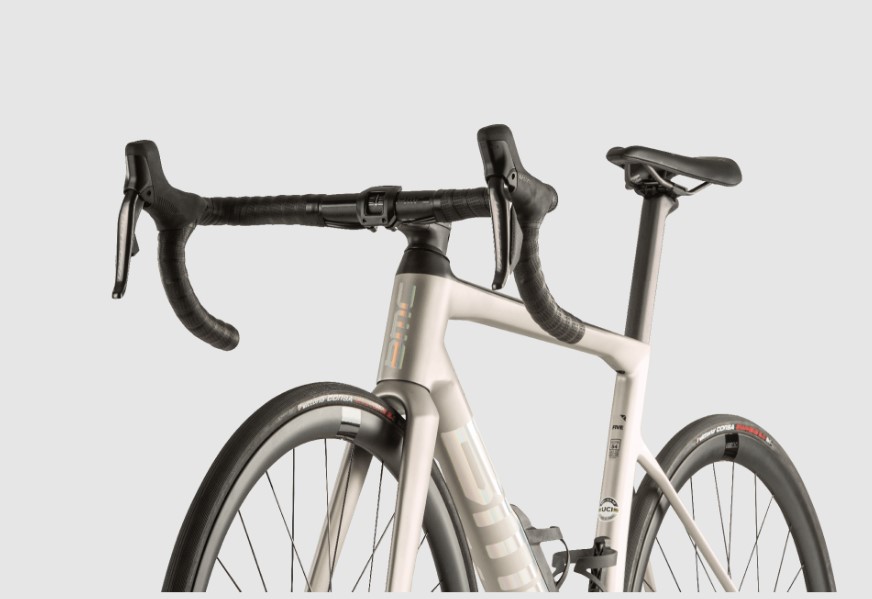

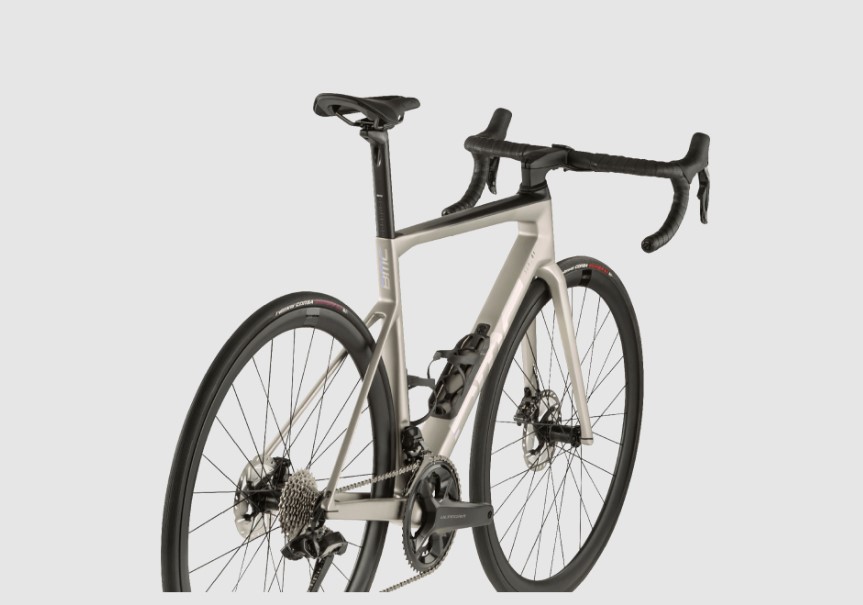

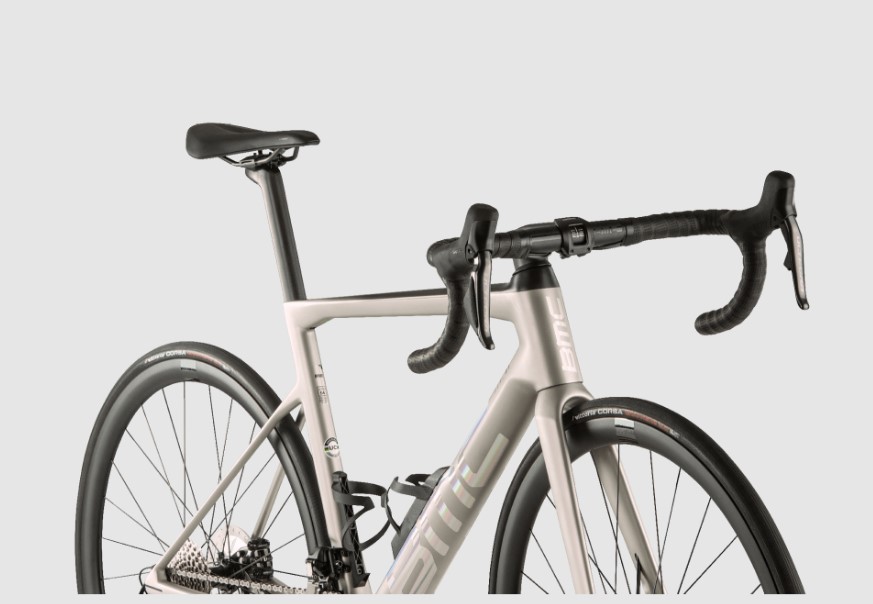

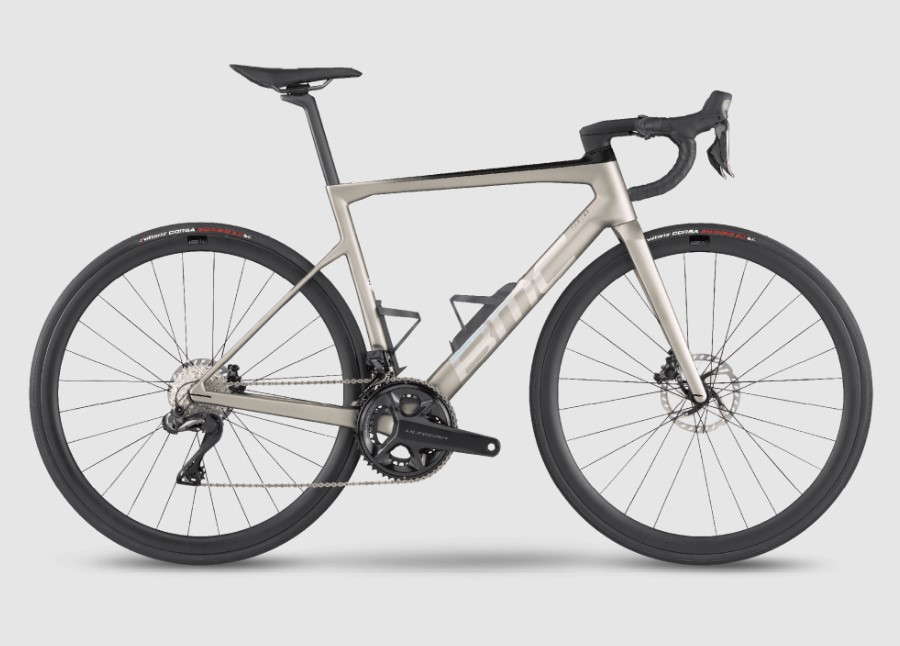

BMC TEAMMACHINE SLR01 FIVE (GREY, 54)
Share this product:
BMC TEAMMACHINE SLR01 FIVE
The original Teammachine SLR01 created the blueprint for the modern road bike. After more than a decade of obsessive innovation and development, today’s world-beating Teammachine SLR01 still leads where others follow. Its TCC Race-engineered Premium Carbon frame includes the Aerocore Design system, ICS Technology and Stealth Cable Routing. New Shimano Ultegra Di2 12-speed ensures excellent performance, backed up by CRD-351 Carbon tubeless ready wheels, an ICS2 stem and aluminium handlebar.
Accelerated Composites Evolution Technology + (ACE+)
ACE+ not only generates thousands of virtual frameset prototypes to satisfy Stiffness, Weight and Compliance targets, but now also includes a fourth key factor, Aerodynamics.
Micro Travel Technology (MTT) Stays
A lightweight and minimalist suspension system that adds 10mm of travel for perfect power transfer and control on the most challenging terrain.
Tuner Compliance Concept (TCC) Gravel
The highest level of compliance through a dedicated carbon layup, D-shape seatpost and Micro Travel Technology.
Top Tube Mount
Mounting option for bolt-on top-tube bags and accessories.
Versatile Fork
45mm tire clearance, 160mm flat mount (a clean mounting solution for bigger rotors), hub-dynamo cable routing and compatible with Fox 32 SC AX suspension fork.
Integrated Protections
Protections on fork dropouts, downtube and chainstays.
Fork Profile
An aerodynamically reshaped fork with steath dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.
FULL SPECIFICATIONS
FRAME: Teammachine SLR 01 Premium Carbon with Aerocore Design • ICS Technology, Stealth Cable Routing • Integrated Aerocore Bottle Cages • Stealth Dropout Design • TCC Race Compliance Level • PF86 Bottom Bracket • Integrated Seatpost Clamp • Flat Mount Disc •
FORK: Teammachine SLR 01 Premium Carbon
• ICS Technology, Stealth Cable Routing
• TCC Race Compliance Level
• Stealth Dropout Design
• Flat Mount Disc
• 12x100mm Thru-Axle
• 48mm Offset (Size 47-51), 43mm Offset (Size 54-61)
CHAINWHEEL: SHIMANO Ultegra 52-36T
CASSETTE: SHIMANO Ultegra 11-30T
CHAIN: SHIMANO Ultegra
REAR DERAILLEUR: SHIMANO Ultegra Di2
SHIFTERS: SHIMANO Ultegra Di2
BRAKES: SHIMANO Ultegra RT-MT800 Rotors (160/140)
HANDLEBAR: BMC RAB 02 Ergo Top Shape Compact Bend
STEM: BMC ICS2 - Integrated Cockpit Design
SEATPOST: Teammachine SLR 01 Premium Carbon D-Shaped Seatpost - 15mm Offset
SADDLE: Fizik Argo Vento R5 (140mm)
HUBS: CRD-351
RIMS: CRD-351 Carbon Tubeless Ready 35mm
TIRES: Vittoria Corsa 25mm
TIRE CLEARANCE: 30mm (Measured Width)
Extras: Aerocore Bottle Cages
WEIGHT: 7.50kg / 16.53lb
WEIGHT LIMIT: 110kg / 242lb
ASTM CLASSIFICATION: Level 1
FRAMESET
Teammachine SLR 01 premium ACE carbon frame with Aerocore design, Tuned Compliance Concept Race
Teammachine SLR 01 premium ACE carbon fork with Aerocore design, Tuned Compliance Concept Race
Teammachine SLR 01 premium ACE carbon D-shape seatpost
Teammachine SLR01 features Integrated Cockpit System (ICS) technology to deliver a completely integrated cockpit and cable routing. ICS technology requires a specific fork design, easily identified by the rectangular steerer.*
Aerocore: aerodynamic featherweight carbon bottle cage system
Downtube bottle cage
Seat tube bottle cage
Stealth cable management
Integrated seat clamp
Easy access Di2 junction box integrated in downtube
Stealth droputs with dedicated stealth thru-axles
ASTM level 1
Only use stealth thru-axles provided with Teammachine SLR01 and Teammachine SLR bikes and modules. Stealth dropouts and thru-axles are compatible with most direct-drive indoor trainers.*
Frame Weight**
820 g
Fork Weight**
345 g
Seatpost Weight**
185 g
COCKPIT
ICS Carbon Cockpit - Superlight Integrated Cockpit System
One-piece design-optimized for low weight and stiffness
Handlebar reach/drop: 67/127 mm
Stem angle: -15˚
Handlebar reach/drop and stem angle are the same for every ICS carbon cockpit
Bar width & stem length: 400x90 mm, 420x100 mm, 420x110 mm, 420x120 mm
305 g (complete cockpit)
ICS2 with RAB02 Bar
Premium, 2nd generation Integrated Cockpit System stem with internal cable routing and easy fit adjustment
Handlebar reach/drop: 70/125 mm (RAB02)
Stem angle: -15˚ (ICS2)
185 g (stem)
Teammachine SLR01 is compatible with any ICS cockpit configuration using the dedicated topcones (ICS Carbon, ICS Aero, ICS2, ICS01, ICS01 0 Degrees).*
COMPATIBILITY
Frame, Fork and Seatpost
ICS specific fork with tapered steerer, flat mount
Compatible with electronic groupsets only
PF86 bottom bracket
D-Shape seatpost
Braze-on front derailleur mount
Replaceable ultra light sandwich rear derailleur hanger
Brakes
Front brake: flat mount, 160 mm rotors only
Rear brake: flat mount, 140/160 mm rotors
Wheels and Axles
Designed for 25 mm, maximum tire clearance 30 mm (actual measured width)
Front stealth thru-axle: 12x100 mm (diameter/frame spacing)
Rear stealth thru-axle: 12x142 mm (diameter/frame spacing)
