FABBRI BICI OK MTB BIKE RACK
HATCHBACK BIKE RACKS
Share this product:

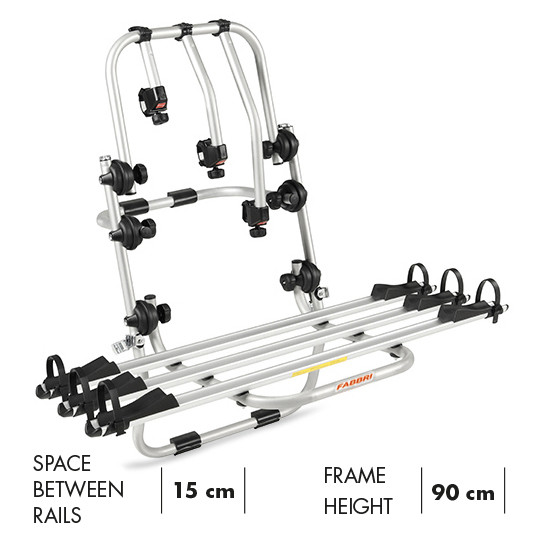

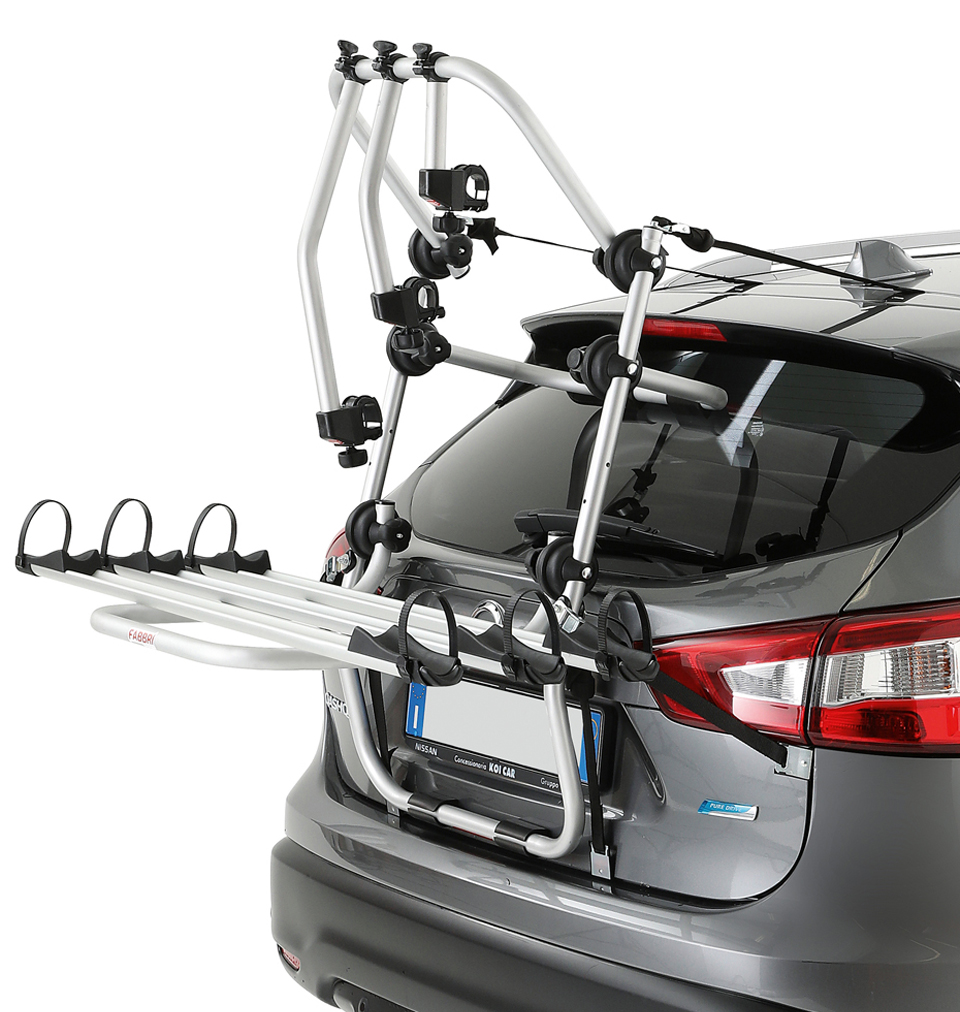

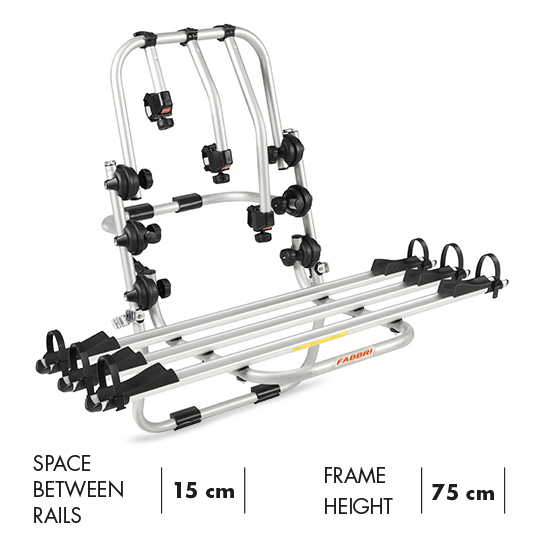

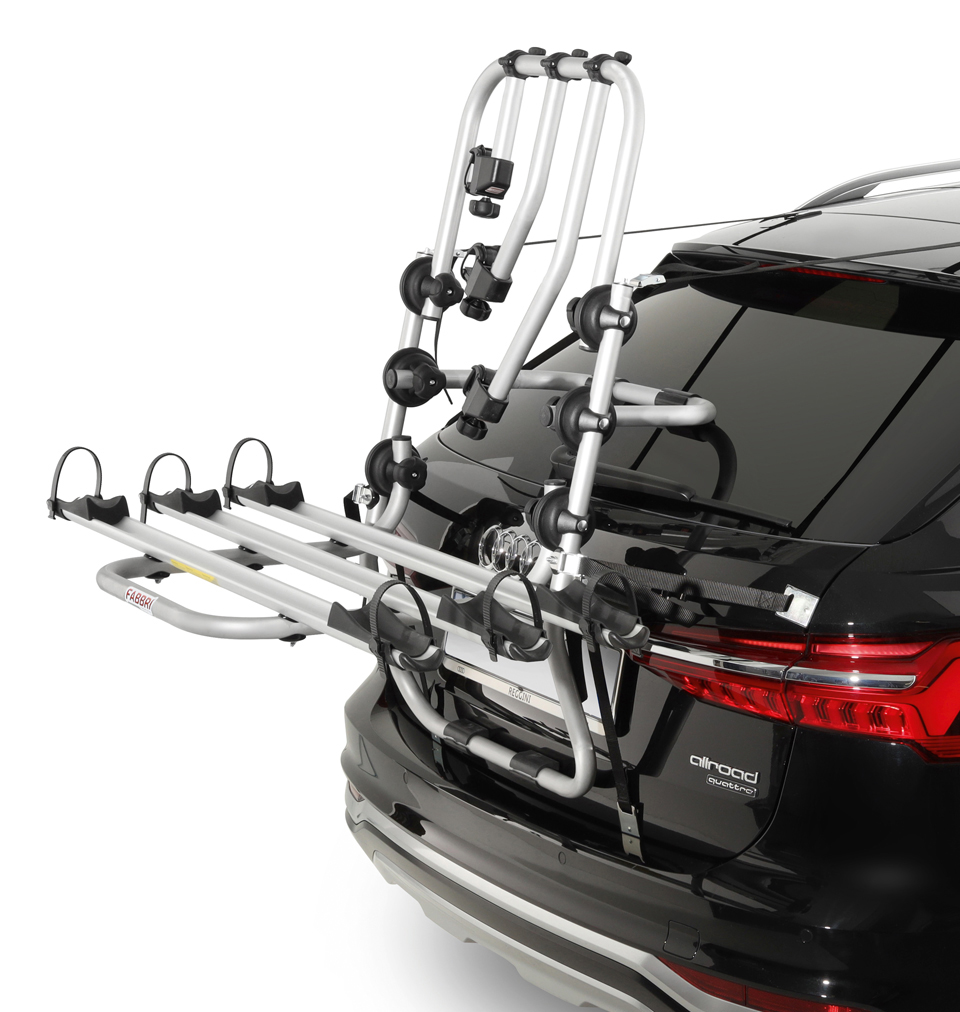

BICI OK MTB HATCHBACK BIKE RACKS
Rear bike rack in electro-welded anodised aluminium, designed for the transport of up to 3 bicycles (from 20″ to 29″/700c). Available in different sizes to perfectly fit your car: sedan-station wagon or SUV. Lightweight and robust, pre-assembled and easy to install on the tailgate. Transporting your bikes has never been easier!
Features:
| PRODUCT | BICI OK MTB 75 | BICI OK MTB 90 |
| LOAD CAPACITY | 45 KG | 45 KG |
| NUMBER OF BIKES | 3 BIKES | 3 BIKES |
| RAIL LOAD | 15 KG | 15 KG |
| BIKE FRAME DIMENSION | 3-5 CM (2.4-6.5 CM con optional) | 3-5 CM (2.4-6.5 CM con optional) |
| OVERALL FRAME DIMENSION | 16 CM (21 CM con optional) | 16 CM (21 CM con optional) |
| RAIL LENGTH | 125 CM | 125 CM |
| TIRE DIMENSION | 2.6" / 6.5 cm | 2.6" / 6.5 cm |
| PITCH | 117 CM | 117 CM |
Features:
Electro-welded aluminium bike rack with frame in 2 sizes for sedan-SW or SUV car bodies. Soft anti-scratch rubber supports
Carries up to 3 bicycles (20″ to 29″/700c); pre-assembled, quick and easy mounting on the car. Foldable
Bike locking by means of 360° rotating aluminium arms with rubber protection; suitable for tubes from 2.4 to 6.5 cm
6 toothed joints in abs with double radius for a perfect seal on bumps and dirt roads
Anti-vibration block screw system for safe and optimal tightening
6 straps and 6 buckles with high-quality plastic-coated hooks (250 kg test) with adapter for special car bodies
125 cm aluminium MTB wheel trays for bikes with wheelbase up to 117 cm and tires up to 2.6″/6.5 cm with anti-scratch wheel straps
Height adjustable wheel trays in the 90 cm frame version
Maximum load 45 kg
Bike anti-theft knob (optional)
It does not cover the license plate
135 cm MTB aluminium wheel trays for bikes with wheelbase up to 127 cm and tires up to 2.6”/6.5 cm (optional)
