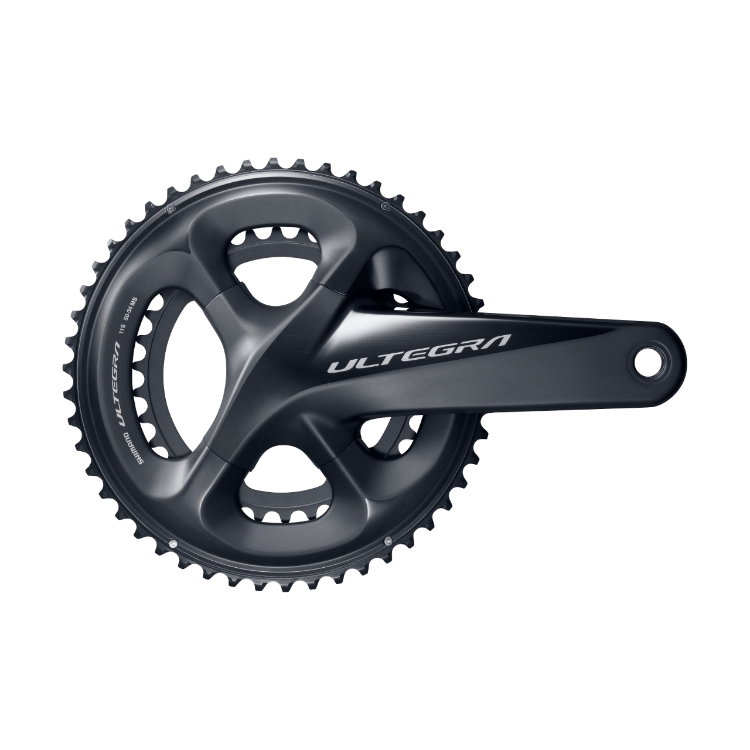

SHIMANO ULTEGRA HOLLOWTECH II 2x11-SPEED ROAD CRANKSET
FC-R8000
Chainring Combination: 50-34T
Average Weight: 674 (50-34T)
170mm Crank Arm Lengths
Share this product:
SHIMANO ULTEGRA - HOLLOWTECH II - ROAD CRANKSET- 2x11-SPEED
The all-new SHIMANO ULTEGRA R8000 series crank features lightweight crankarms, a hollow outer chainring, and a wider gear pitch for increased clearance on modern road frames. It is available with 53-39, 52-36, 50-34, and 46-36T chainrings and 165, 170, 172.5, and 175mm crank arm lengths.
FEATURES
-Lightweight crankarm design optimized for power-transfer efficiency
-Minimal weight without sacrificing stiffness
- HOLLOWTECH II
-Rider-tuned gear performance through various gear combinations
-Redesigned FC for greater frame compatibility
-Wider gear pitch increases clearance between chain and leading teeth, providing compatibility with frames of O.L.D. 135 mm and 410 mm chainstay length
PRODUCT SPECIFICATIONS
MODEL NO | FC-R8000 |
SERIES | ULTEGRA R8000 Series |
Color | Series color |
Average weight | 690 (53-39T) 681 (52-36T) 674 (50-34T) 668 (46-36T) |
Threaded bottom bracket shell width (mm)_70 | ✔ |
Chainring combination | 50-34T 52-36T 53-39T 46-36T |
Compatible bottom bracket type_Outboard | ✔ |
Crank fixing screw included | ✔ |
Crank arm length (mm)_165 | ✔ |
Crank arm length (mm)_170 | ✔ |
Crank arm length (mm)_172.5 | ✔ |
Crank arm length (mm)_175 | ✔ |
Spider/Gear arms | 4 |
HOLLOWGLIDE | X - (46-36T) |
HOLLOWTECH II | ✔ |
HOLLOWTECH crank arm | ✔ |
Optional chain guard_Without chain/bash guard | ✔ |
Recommended bottom bracket_Press-fit | SM-BB72-41B |
Recommended bottom bracket_Threaded (normal) | SM-BBR60 |
Threaded bottom bracket shell width (mm)_68 | ✔ |
Q-factor (mm) | 146 |
Chain line (mm) | 43.5 |
Compatible chain | HG-EV 11-speed, HG-X11 |
P.C.D. left / right (mm) | 110 |
P.C.D. (mm) | 110 |
Rear speeds | 11 |
TECHNOLOGIES
