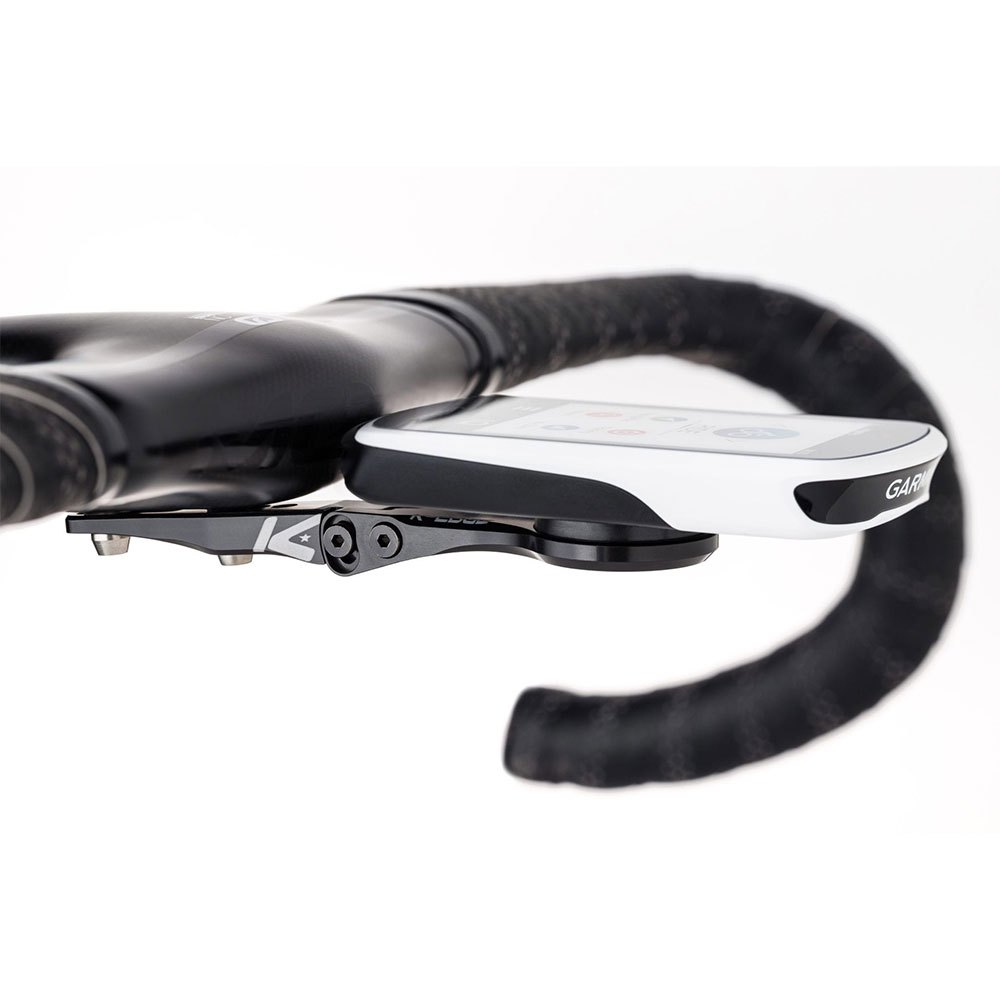

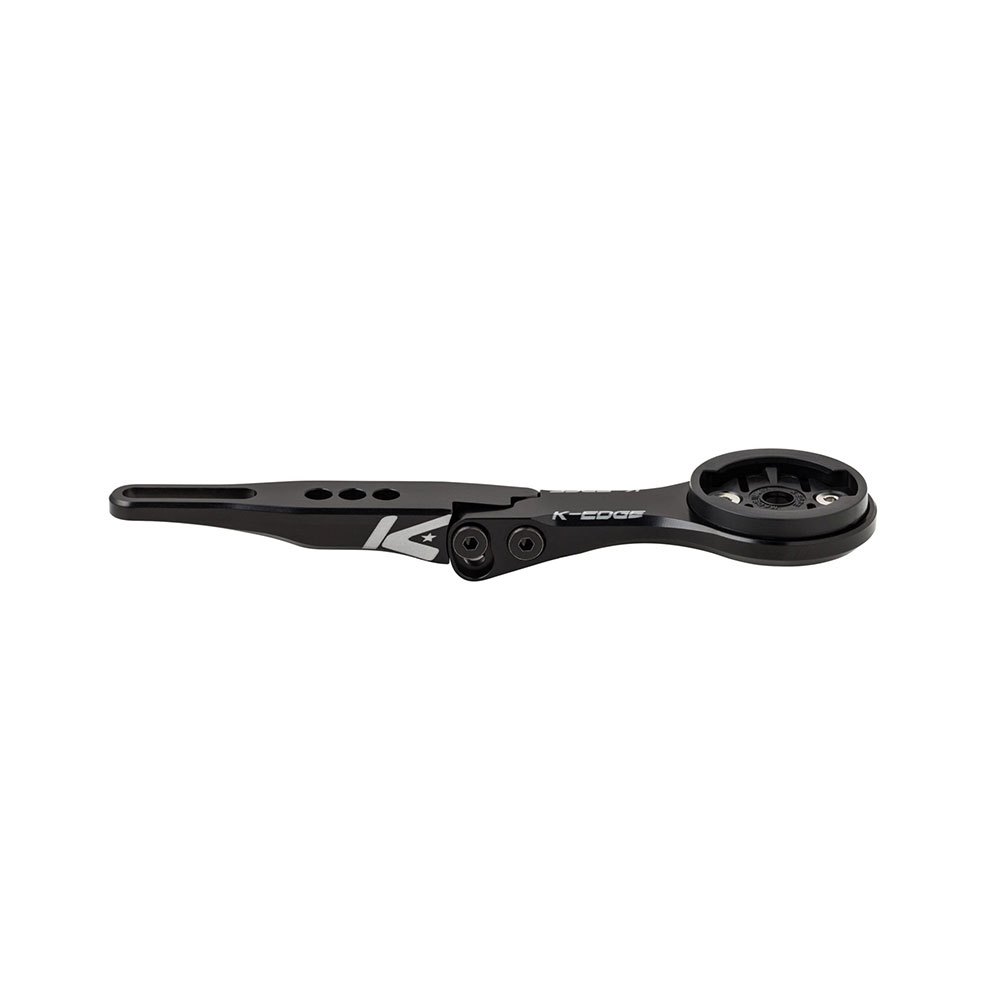

K-EDGE GARMIN INTEGRATED HANDLEBAR SYSTEM

Description

Attributes (specs):

-For Integrated Handlebar (one piece) bar/stem

-Pro-level mount with -7 degree articulation for custom computer positioning

-Lifetime warranty. CNC Machined. Black Anodized

-GARMIN approved replaceable computer insert protects computer tabs

-Not combo compatible (choose K13-2500iC mount for Combo use)

-M5 hardware included. If a smaller bolt required, use an 8.4mm washer to ensure a secure fit

-Made in-house. Boise, Idaho USA

Compatibility:

-All Garmin cycling computers.

-Most Canyon integrated handlebar-stem systems (not compatible with Canyon H36 integrated bar).  **M4x20mm 0.7 thread pitch hardware not included.**

- Canyon Fit Kit

-Combo Adapter (K13-580-BLK) is NOT compatible and will void the lifetime warranty.

-NOT COMPATIBLE WITH: CERVELO WISHBONE SYSTEM (ABO8, CS028 V-STEM), VENTUM INTEGRATED HANDLEBARS, COLNAGO R41 STEM, VISION METRON 5D, BLACK INC. INTEGRATED HANDLEBARS, BMC ICS HANDLEBARS/STEMS.

Installation:

-All IHS mounts must be installed using one of the three-round screw holes AND the elongated mounting slot. Failure to do so will void the lifetime warranty.

-All IHS mounts must be directly mounted to the handlebar without the use of shims or adapters.

-Installation of an IHS mount in any orientation that is not following the above guidelines will void the -K-EDGE lifetime warranty.

Please contact K-EDGE warranty manager [email protected] for questions or concerns. We highly suggest you follow the recommendations in the Garmin instructions, that recommend the use of the provided tether leash.

Additional information

Weight : 42g

Dimensions :14.5 × 14.5 × 4 cm
