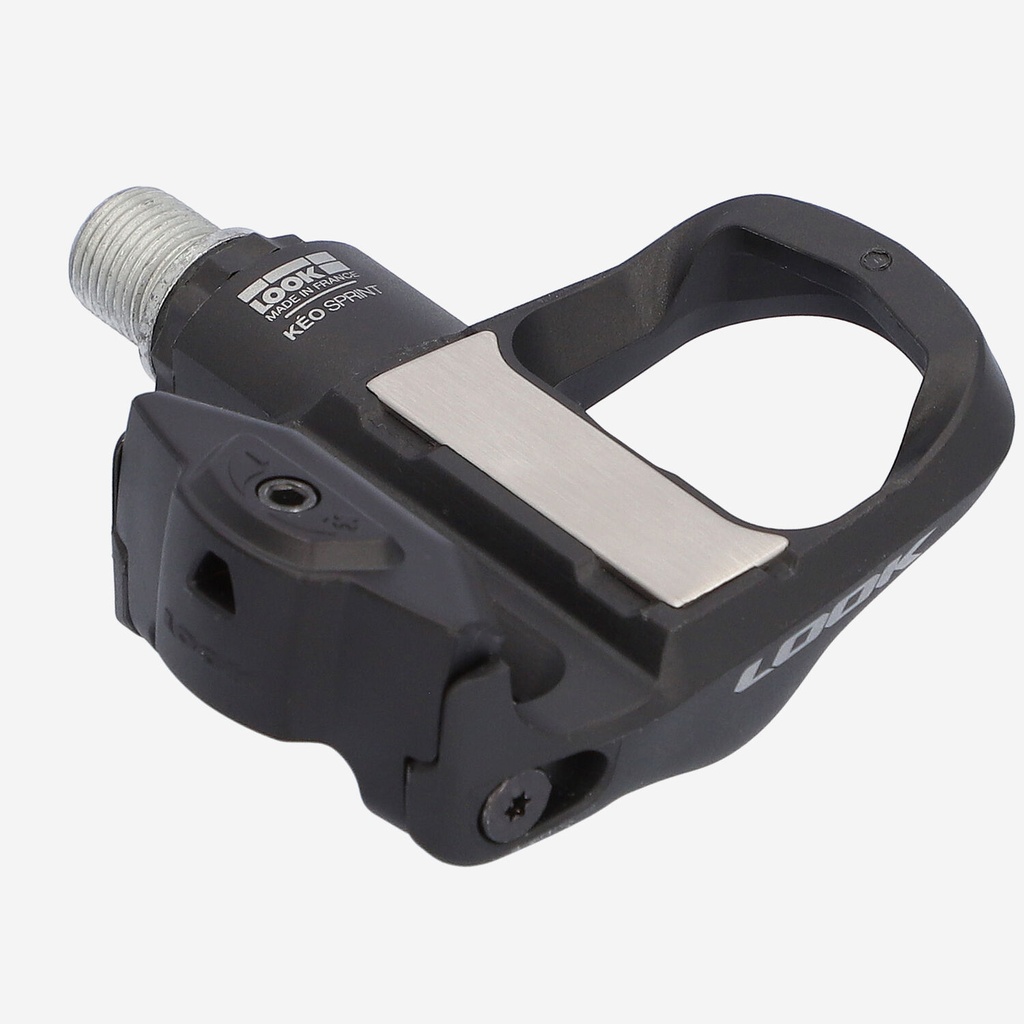

LOOK KEO SPRINT PEDALS

Description

Designed for occasional, leisure and new riders, Keo Sprint pedals are reliable, efficient, and extremely durable.

Built with spring technology, it is possible to adjust the tension between 8 and 12 for a safe entry/release.

To increase its durability, the platform surface is reinforced with a stainless-steel plate that gives it exceptional longevity.

CROMOLLY AXLE FOR MORE RELIABILITY

The Keo Sprint spindle is built with an oversized steel axle and uses micro-ball (12 mm inner x 18 mm exterior) and needle bearings for better resistance under load.

 A spacer is positioned to hold the needle bearings in place which limits friction and promotes better fluidity during rotation. A new method of controlling how the spindle is fixed to the pedal body also guarantees that the pedals are even more reliable.

LOOK axles are only approved after a rotational test of 2 million cycles at 100 rpm with a load of 90 kg on the center of the pedal and an eccentric rotation (which creates stress on each revolution). This is equivalent to a sprint by André GREIPEL of 1700 watts at 100 rpm for 333 hours! This test is much more demanding than the current standard, the ISO 4210.

SPECIFICATIONS

USE: Beginner, Recreational and Casual

BODY: Dual-injected composite

AXLE: Cromolly 53mm

THREADING: 9/16 X 20 mm

BEARINGS: 1 roller bearing, 1 needle bearing cartridge

PEDAL STACK HEIGHT: 17 mm

DISTANCE PEDAL SPINDLE / CRANK ARM: 53 mm

PLATFORM SURFACE: 210mm² / Width: 45 mm

TENSION: Adjustable Spring from 8 to 12

CLEATS: Keo Grip Cleats Grey (4.5° float)

FLOAT: 0 °, 4.5 ° or 9 ° according to the cleat color (Black, Grey, Red)

PEDAL WEIGHT: 140g (350g per pair with cleats and screws)

COLORS: Black

ACCESSORIES: A pair of Grey Kéo Grip cleats + screws

GUARANTEE: 2 years
