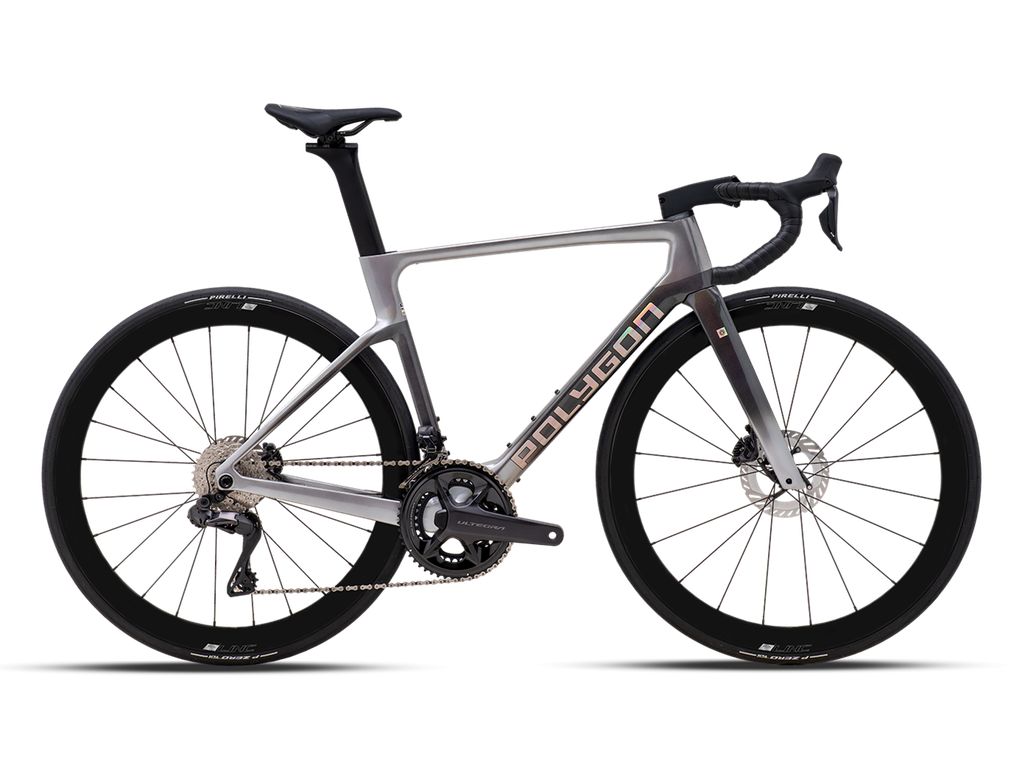

POLYGON HELIOS A8 Di2 (Silver)
Shimano Ultegra Di2 R8170, 1x12 SPEED
Share this product:
In The Relentless Pursuit Of Speed
Designed To Cut Through Air Better
Introducing the all-new Helios Athe pinnacle of aerodynamic engineering and racing performance. Developed over three years of relentless testing and perfected with the elite UCI Continental Team, TSG, the Helios A is built to dominate any race condition.Refined to be 5.2 seconds faster than its predecessor and lighter than ever, the Helios A is meticulously optimized for speed, agility, and control. Whether battling headwinds or slicing through tight corners, its cutting-edge aerodynamics and balanced stiffness deliver an unmatched ride.This isn't just a bike its your competitive edge.
Features
Cuts Through Air - The best teacher of aerodynamics comes from raindrops: the billions that seek the most efficient way of cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 24% reduction in drag over previous generation designs.
Flies On Climbs - We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chain stay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
Synchronized To The Human Body - At the end of the day, Helios was designed with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enables the rider of this bike to best control, corner, and conquer.
Specification
| Frameset | ACX PERFORMANCE UCI APPROVED |
| Fork | ACX PERFORMANCE UCI APPROVED |
| Shifter | SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED |
| Crank | SHIMANO ULTEGRA FC-R8100 52/36T |
| Cassette | SHIMANO ULTEGRA CS-R8101-12 11-34T |
| Rear Derailleur | SHIMANO ULTEGRA Di2 RD-R8150 DIRECT ATTACH |
| BB | TOKEN T47 85.5 FOR 24mm SPINDLE |
| Chain | KMC X12 EPT 12-SPEED |
| Saddle | LINC FLUX2, CR-MO ø 7mm |
| Seatpost | CARBON AERO, DxL: AERO 35 x 351mm |
| Handlebar | LINC CARBON, W: 400mm (XXXS, XXS, XS) / 420mm (S, M) / 440mm (L, XL), BB: 31.8mm, R/D: -134.2 mm (XXXS, XXS, XS) / -138.2mm (S, M, L, XL), B/R: 92.5mm (XXXS, XXS, XS) / 89.7mm (S, M, L, XL) |
| Handlestem | CARBON, EXT: 90mm (XXXS) / 100mm (XXS, XS) / 110mm (S, M) / 120mm (L, XL), BB: 31.8mm, R/D: (-7.5)degree |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 |
| Wheel Set | LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED |
| Tire | PIRELLI PZERO ROAD TLR 700x28C |
| Rim | F: CARBON 622-22 20H FOR TYRE 622-28/62 DISC TUBELESS READY / R: CARBON 622-22 24H FOR TYRE 622-28/62 DISC TUBELESS READY |
| Hub | F: ALLOY THRU AXLE 12x100mm 20H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK |
| Spokes | F: STAINLESS DOUBLE BUTTED NDS:278mm DS:280mm / R: STAINLESS DOUBLE BUTTED NDS:272mm DS:274mm |
| Brake Lever | SHIMANO ULTEGRA ST-R8170 |
| Brake Caliper | SHIMANO ULTEGRA HYDRAULIC DISC |
| Rotor | SHIMANO ULTEGRA CL800 F:160mm / R:140mm CENTER LOCK |
