POLYGON HELIOS A8 GREY
Share this product:

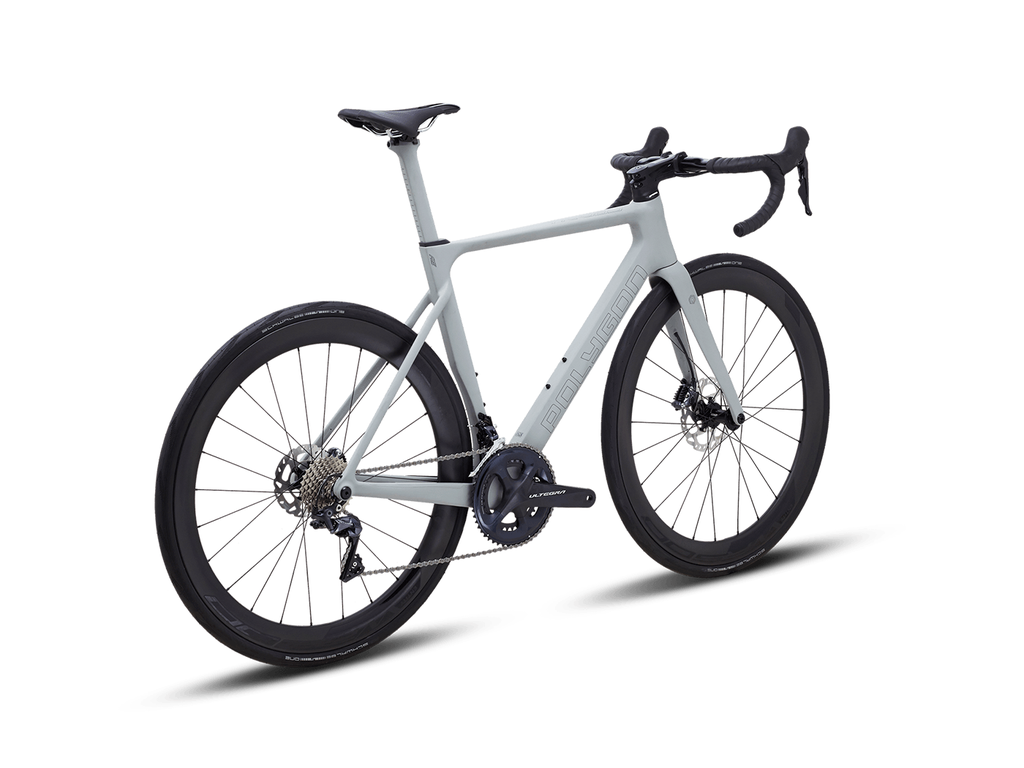

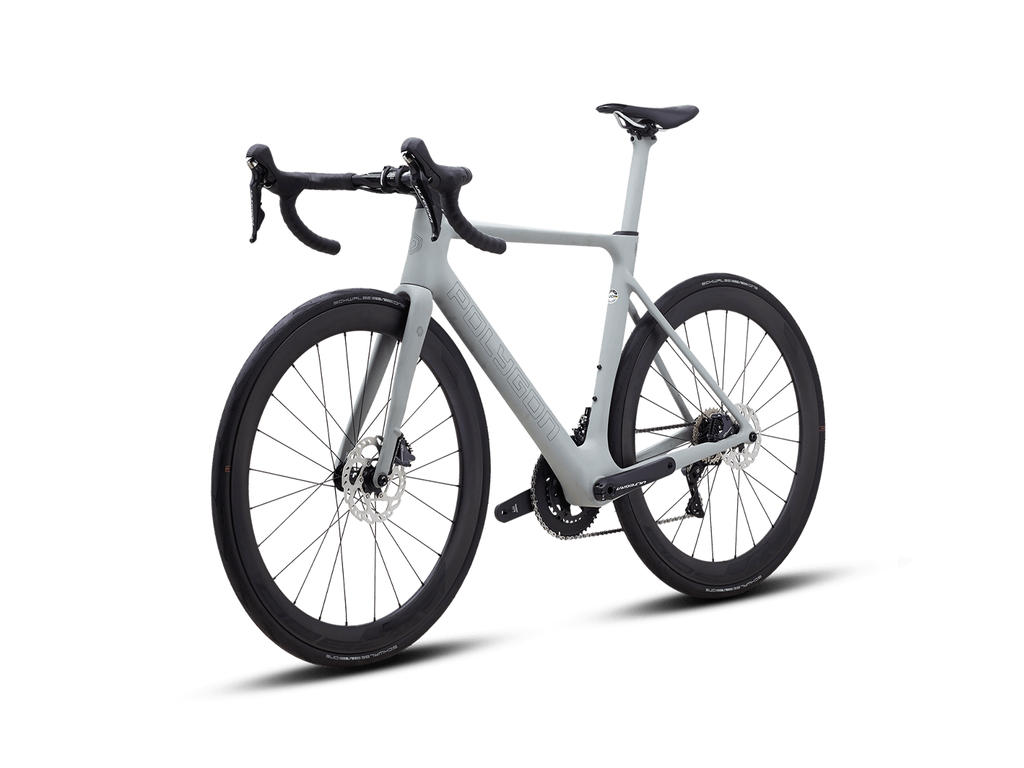

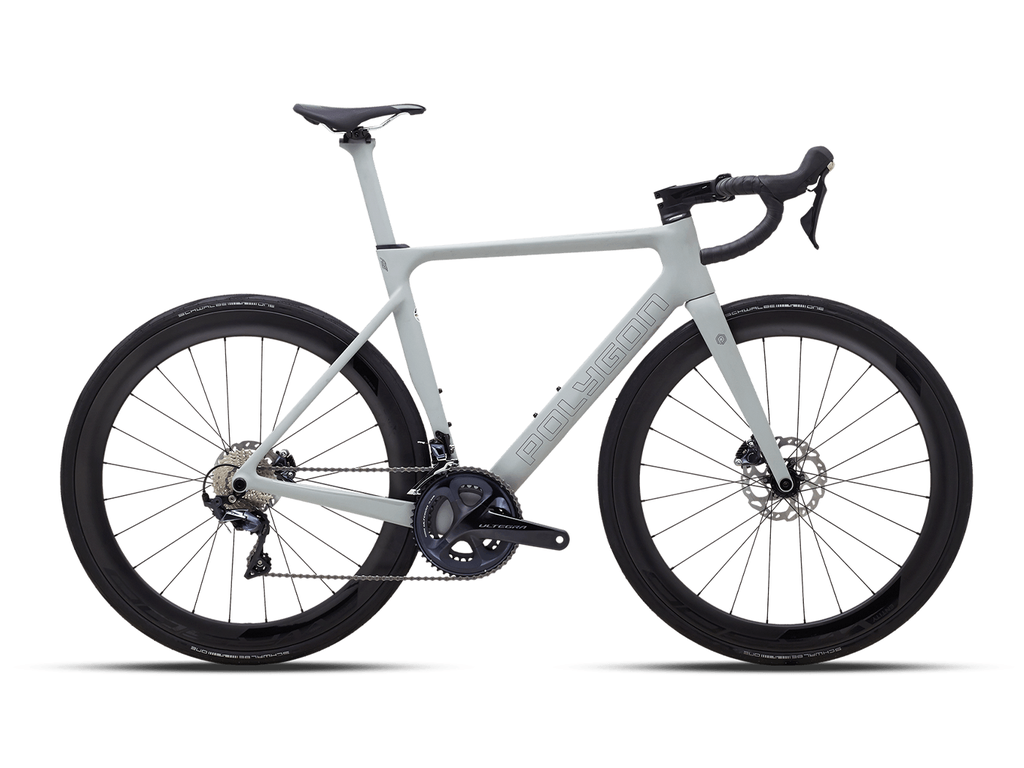

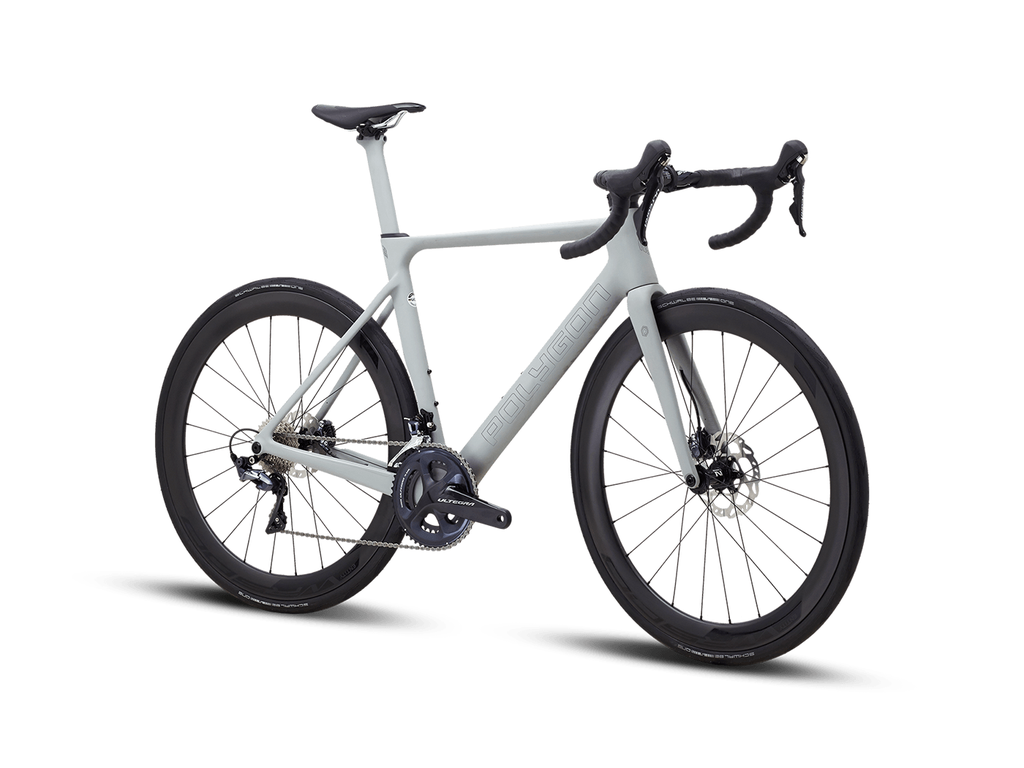

Polygon Helios A8 Road Bike
The all new all-rounder road bike designed to cut through air without leaving behind turbulence
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.
Cuts Through Air
The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 31% reduction in drag over previous generation designs.
Flies On Climbs
We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
Synchronized To The Human Body
At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enables the rider of this bike to best control, corner, and conquer.
SPECIFICATIONS
| Frameset | ACX PERFORMANCE UCI APPROVED |
| Fork | ACX PERFORMANCE UCI APPROVED, TAPER 1-1/8" TO 1-1/2" |
| Frame Color | NUBIUM GREY |
| Decal Color | BLACK - WHITE |
| Shifter | SHIMANO ULTEGRA ST-R8020, 2x11-SPEED DCL |
| Crank | SHIMANO ULTEGRA FC-R8000 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) |
| Cassette | SHIMANO ULTEGRA CS-R8000-11 11-30T |
| Rear Derailleur | SHIMANO ULTEGRA RD-R8000-SS, DIRECT ATTACH |
| BB | SHIMANO BB-RS500-PB, PRESSFIT BB86 |
| Chain | SHIMANO CN-HG601-11 |
| Pedal | - |
| Saddle | ENTITY FLUX2, CR-MO ø 7mm |
| Seatpost | CARBON, AERO 35 x 337mm (XS) / 357mm, (S, M, L, XL) |
| Handlebar | FSA ENERGY COMPACT, W: 400mm (XS, S) / 420mm (M, L) / 440mm (XL), BB: 31.8mm, R/D: 123.2mm, B/R: 78mm |
| Handlestem | FSA NS SMR, EXT: 90mm (XS, S) / 100mm (M, L) / 110mm (XL), BB: 31.8mm, B/R: 6degree |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 |
| Wheel Set | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED |
| Wheel Size | 700C |
| Tire | SCHWALBE ONE ADDIX TLE 700x28C |
| Rim | CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY |
| Hub | F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK |
| Brake Lever | SHIMANO ULTEGRA ST-R8020 |
| Brake Caliper | SHIMANO ULTEGRA BR-R8070 FLAT |
| Rotor | SHIMANO SM-RT70 F:160mm / R:140mm CENTER LOCK |
GEOMETRY / SIZE CHART
