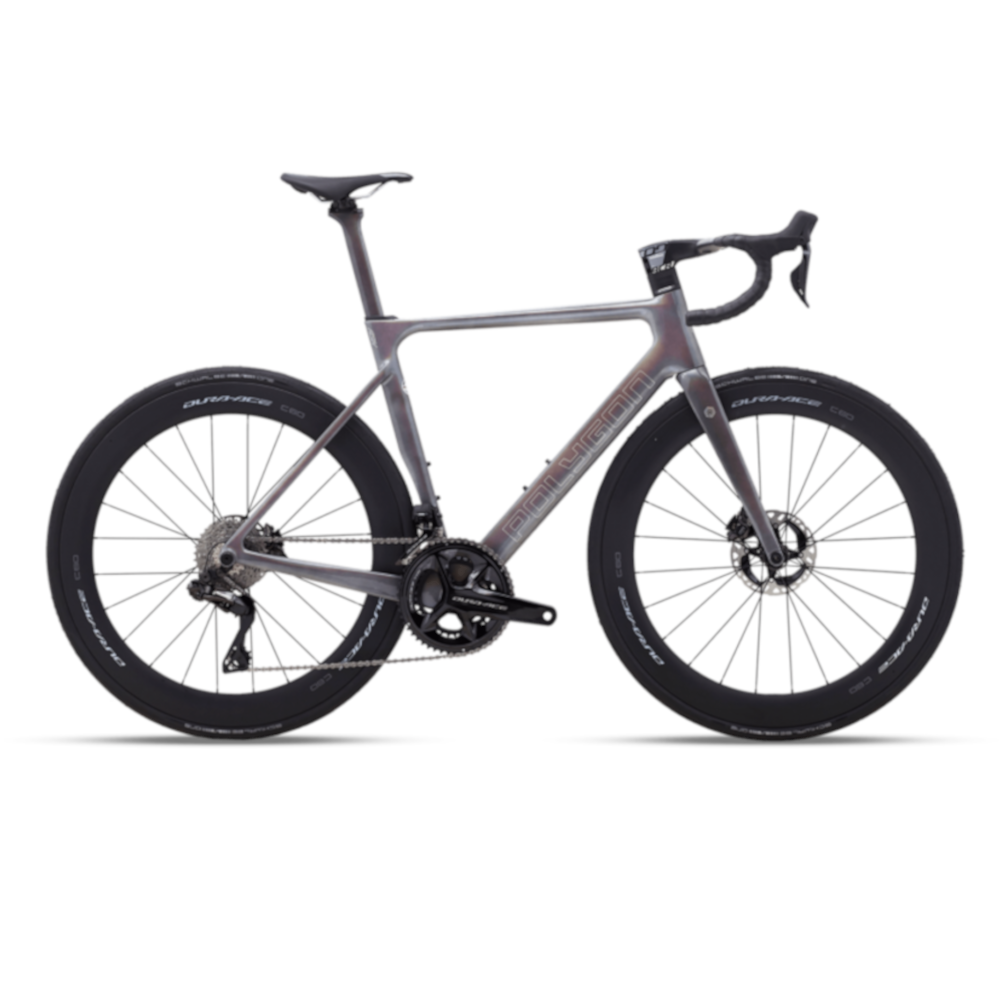

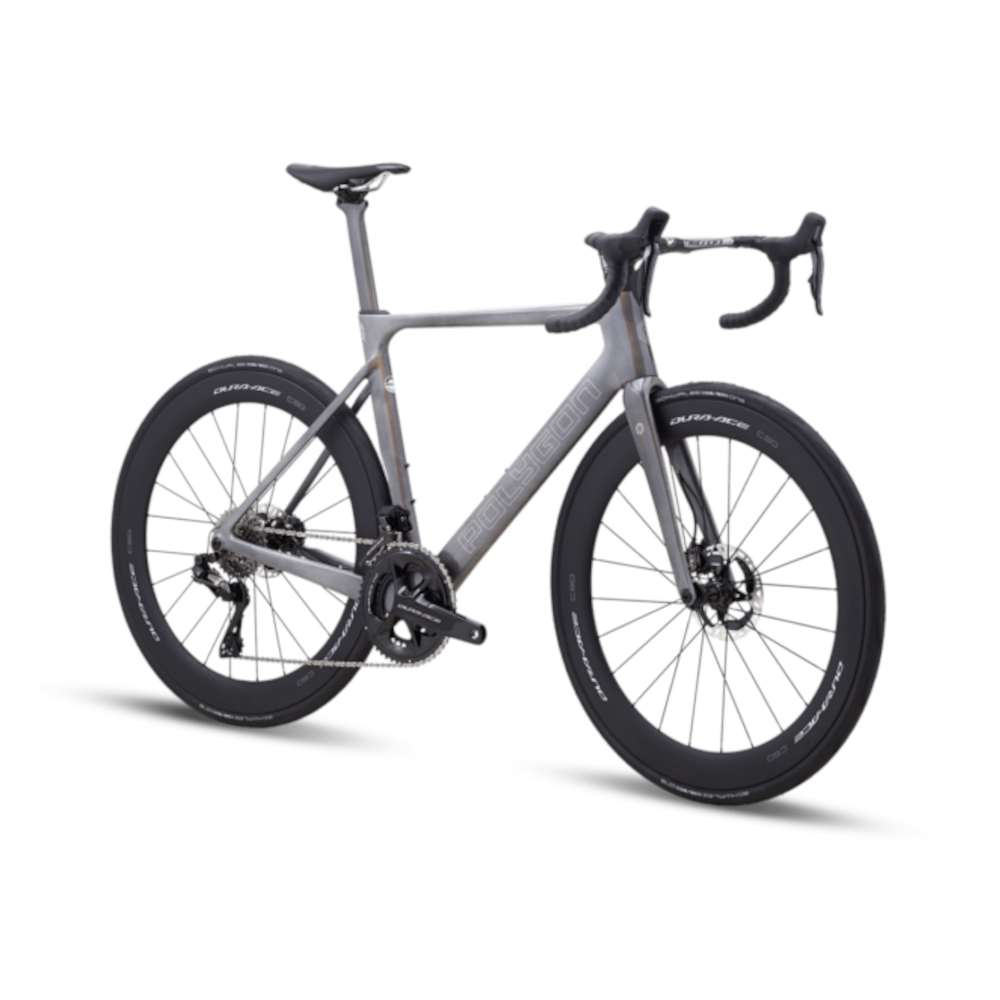

POLYGON HELIOS A9xx
Share this product:
IN THE RELENTLESS PURSUIT OF SPEED
DESIGNED TO CUT THROUGH AIR BETTER
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because we can be even faster by embracing nature.
FEATURES & SPECIFICATIONS
Cuts Through Air
The best teacher of aerodynamics comes from raindrops: the billions that seek the most efficient way to cut through the air. With this inspiration, the new shape of Helios is designed to cut through the air without leaving behind turbulence, thus achieving an industry-leading; 31% reduction in drag over previous generation designs.
Flies On Climbs
We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.
Synchronized To The Human Body
At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that are proven to minimize rolling resistance, enable the rider of this bike to best control, corner, and conquer
INFORMATION
| Color | Black |
| Size | L 700X545, M 700X520, S 700X500, XS 700X475 |
| Brand | Polygon |
| Frameset | ACX PERFORMANCE UCI APPROVED |
| Fork | ACX PERFORMANCE UCI APPROVED |
| Shifter | Shimano Dura Ace ST-R9270 Di2 12-Speed |
| Crank | SHIMANO DURA-ACE FC-R9200 52/36T W/ POWER METER, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) |
| Cassette | Shimano Dura Ace CS-R9200 12-Speed 11-34T |
| Rear Derailleur | Shimano Dura Ace Di2 RD-R9250 12-Speed DA |
| BB | Bottom Bracket Shimano KSMBB9241B For Road |
| Chain | Shimano CN-M8100 12-Speed Quick-Link |
| Pedal | Flat Alloy W/ Replaceable Pin |
| Saddle | Entity Flux2, Cr-Mo Rail |
| Seatpost | Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL) |
| Handlebar | Vision Metron 5D ACR Integrated 400mm (XS, S) 420mm (M, L) 420mm (XL) |
| Handlestem | Vision Metron 5D ACR Integrated 100mm (XS, S) 110mm (M, L) 120mm (XL) |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE 52/28.6, IS 52/40 |
| Wheel Set | ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED |
| Tire | SCHWALBE ONE ADDIX TLE 700x28C |
| Brake Lever | SHIMANO DURA-ACE ST-R9270 |
| Brake Caliper | SHIMANO DURA-ACE BR-R9270 |
| Rotor | SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK |
