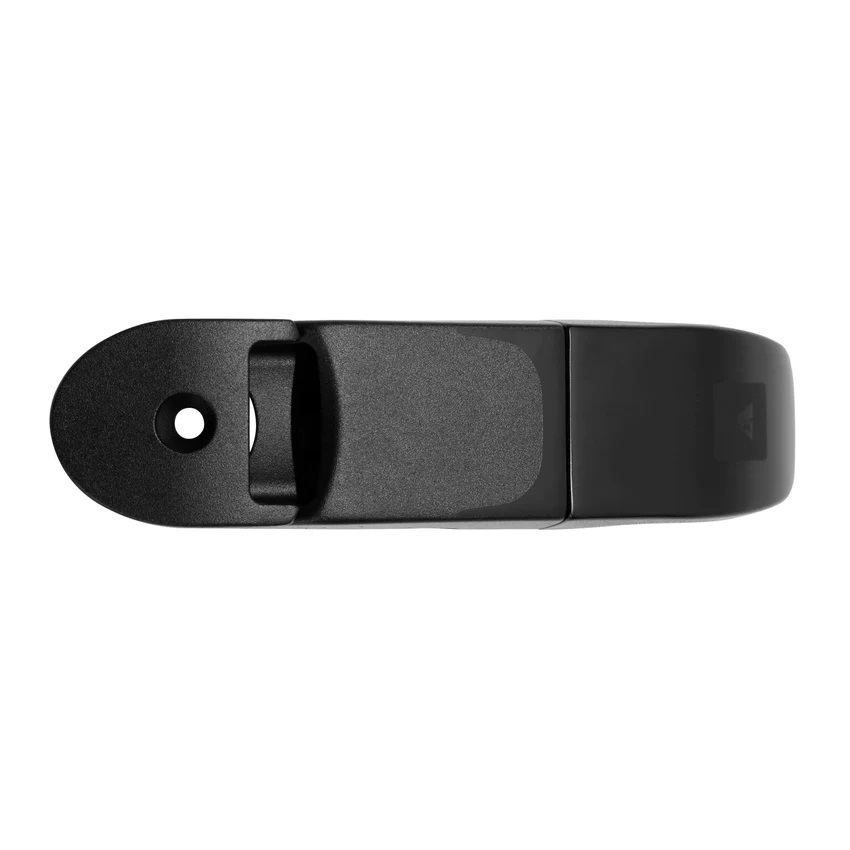

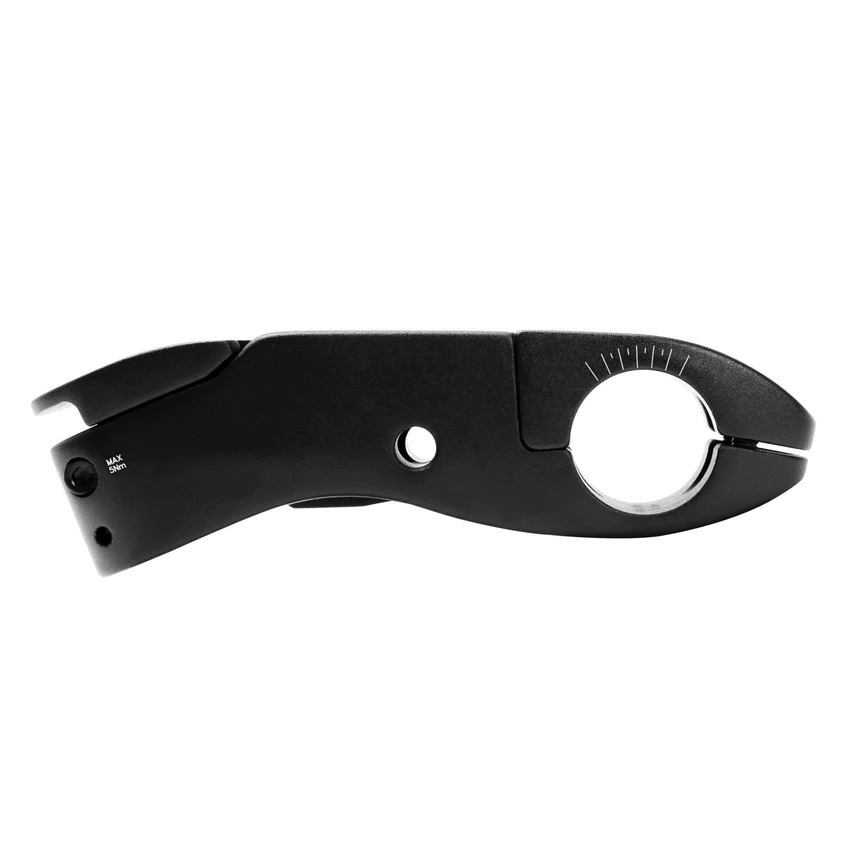

PROFILE DESIGN AERIA ULTIMATE STEM V2
Share this product:
OVERVIEW
The Aeria Ultimate stem has been designed to complement our Aeria Ulitmate Bar. It offers hidden cable routing. The low rise options allow a rider to get into a low, aerodynamic position especially useful if you need to compensate for a modern, high stack frame.
Fit Data
The Aeria Ultimate stem is available in two length options
-Stem Length: 70mm,100mm
-Stem Stack: 12.2mm
-Weight: 70mm (364g) - 100mm (436g)
The stem shape is designed to match perfectly with the Aeria Ultimate bar, it will also fit any other 31.8mm basebar.
Accessories
The HSF Aeria hydration system is designed to fit to this stem and convert any bike into a ‘Superbike’
TECH SPECS
-Weight: 70mm (364g) - 100mm (436g)
-Length: 70, 100mm
-Material: Forged 6061-T6 aluminum
-Clamp Diameter: 31.8mm
-Steerer Tube Diameter: 1-1/8in (1in with included shim)
-Stack Height: 32.5mm
-Finish: Matte Black with Gloss Accents
*70mm not capable
of storing Di2 Junction Box or EPS Interface
70mm Stem Specs
100mm Stem Specs
Tech Guide
Torque settings
-Steerer clamp: 31.8mm diameter (5Nm)
-Bar clamp: 31.8mm diameter (6Nm)
-Top Cap bolt: M5
