SWISSSIDE Hadron² Classic 500 Disc Brake Wheelset
The HADRON² Classic 500 offers top-level aero performance, whether on twisty mountain passes, flat time trial courses or everything in-between at an affordable price.
Share this product:
HADRON² Classic 500 Disc Brake
The HADRON² Classic 500 offers top-level aero performance and durability, whether on twisty mountain passes, flat time trial courses or everything in-between at an affordable price. Using the latest in aerodynamic and engineering development methods transferred from Formula 1, the HADRON² Classic rims are full carbon and tubeless ready, using the same race & award winning aero rim shapes as the HADRON² Ultimates. Their shallow rim profiles are designed to maximize handling and aero stability in high wind conditions by minimizing the sensitivity to gusty crosswinds. The 20mm inner rim width is optimum for minimum rolling resistance with 25mm and 28mm tyres and remains compatible with even wider tyres.
The HADRON² Classic is built with ultra durable DT Swiss hubs custom made for Swiss Side’s requirements, together with their Aero Comp spokes. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured. Available only in disc brake version. Full carbon clincher, tubeless ready construction. UCI approved. Includes lifetime warranty for material and workmanship defects and a Fair-Share-Policy for any other riding damage.
Specifications
| Front Wheel | 747g |
| Rear Wheel | 895g |
| Wheel Set | 1642g |
| Aero Profile Height | 50mm |
| Max. Rim Width | 27mm |
| Brake Track Width | N/A |
Compatibility
Shimano 10,11,12 speed freehub as standard. Also SRAM 10,11 speed compatible. Free hub kits available for order separately: Campagnolo 10,11, 12 speed, and 12-speed XDR Driver

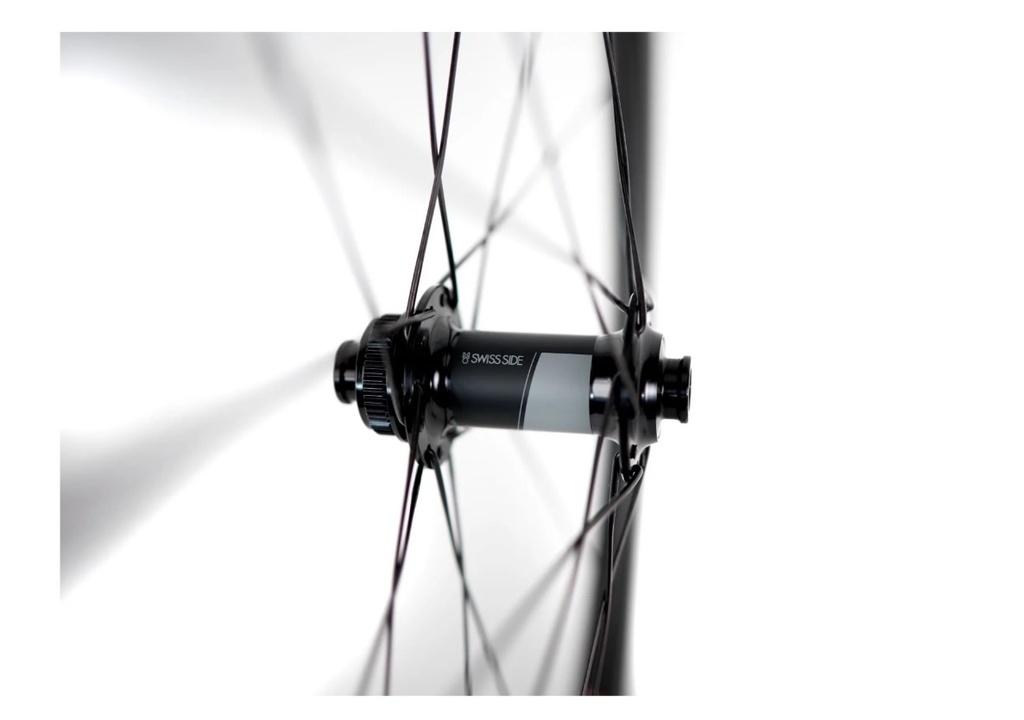

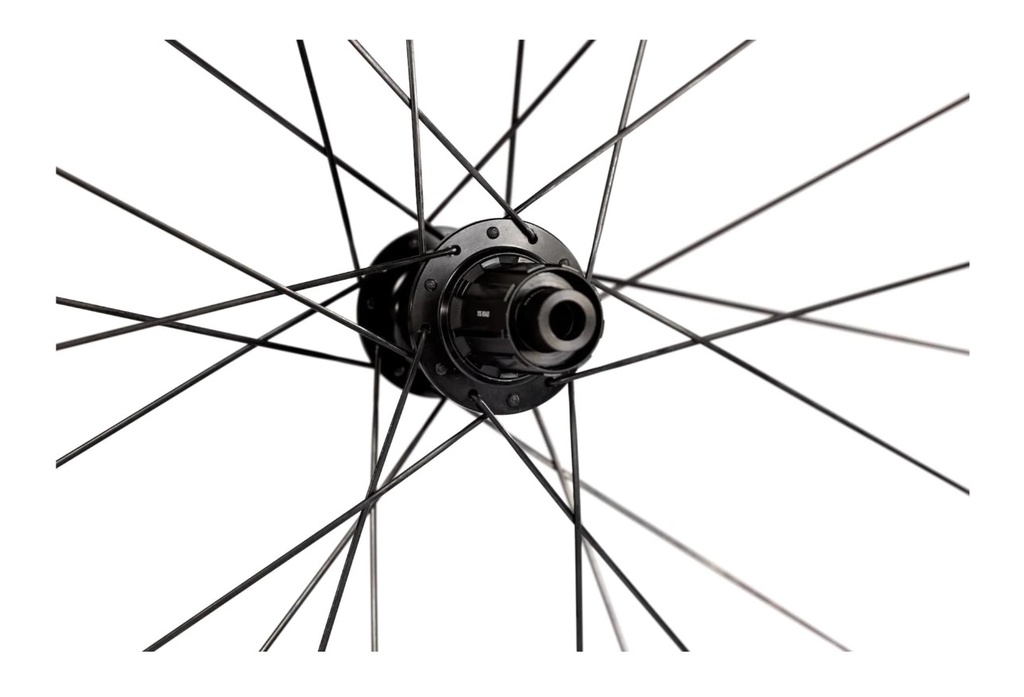

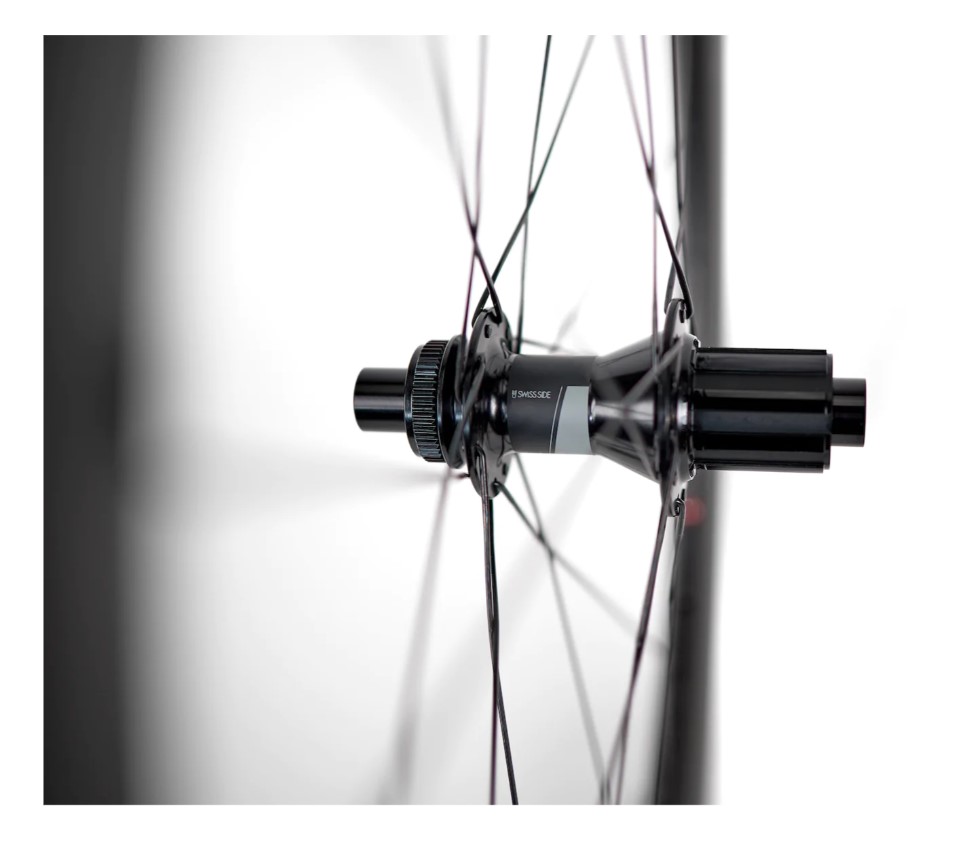

Hub
DT Swiss 370 Classic, custom for Swiss Side. Brake Interface: Disc Center Lock; Axle System as delivered: 12 x 100mm thru axle front; 12 x 142mm thru axle rear; Disc brake wheel hubs are also supplied with interchangeable end caps for the following axle configurations: 5mm x 100mm QR front axle; 5mm x 135mm QR rear axle; 12mm x 135mm rear thru-axle. For DISC Rear Wheel: DT Swiss 180 DICUT, 36T Ratchet EXP. Disc Brake Interface: Disc Center Lock; 12/142mm Axle System.
Spokes
DT Swiss Aero Comp J-bend spokes with DT Swiss pro lock hidden aluminium nipples.
Front Disc Brake (2-cross pattern): 24 spokes.
Rear Disc Brake (2-cross pattern): 24 spokes.
Bearings
High end stainless steel bearings
Low friction thanks to single sided seals
2080 N load capacity per bearing
Minimal bearing clearance
Additional Info
Tyre Size
All tyres from 25mm to 64mm can be used on this rim. We recommend using a 25mm tyre on the front. If additional comfort is desired, a 28mm tyre can be used on the rear. We do not recommend tyres greater than 30mm width for maximimising aerodynamic performance.
Rider Weight / Safety Notice
The maximum total system weight (bike + rider) for the HADRON² Classic disc brake wheelset is 110kg. Tyre pressures of 120psi should not be exceeded.
