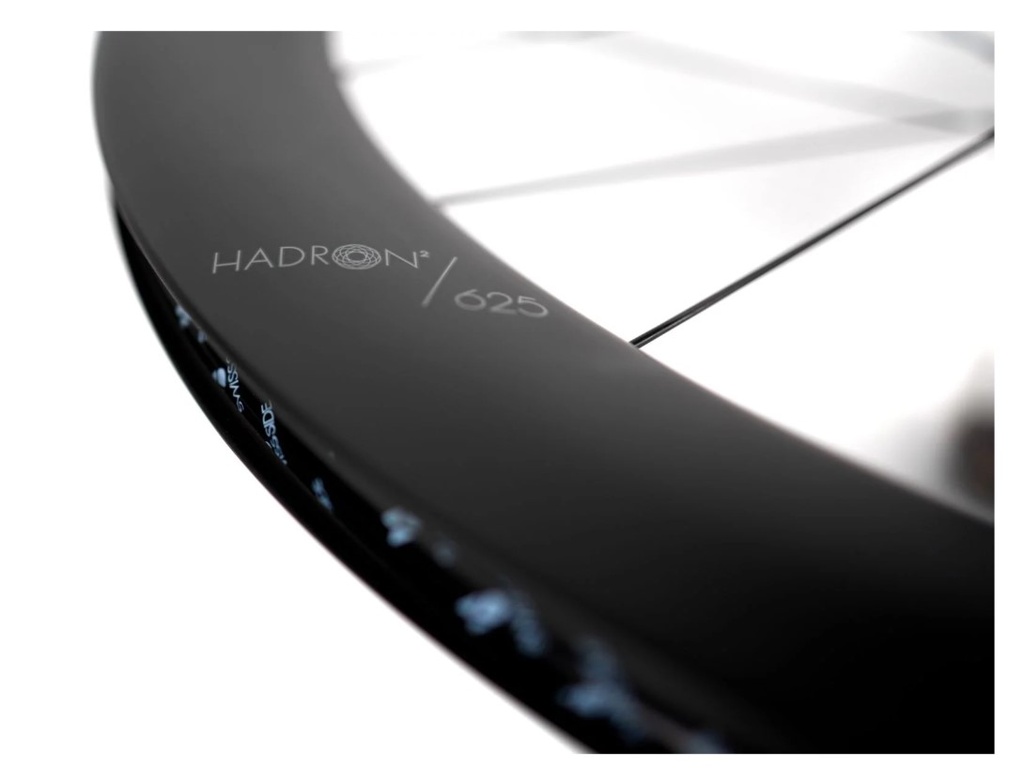

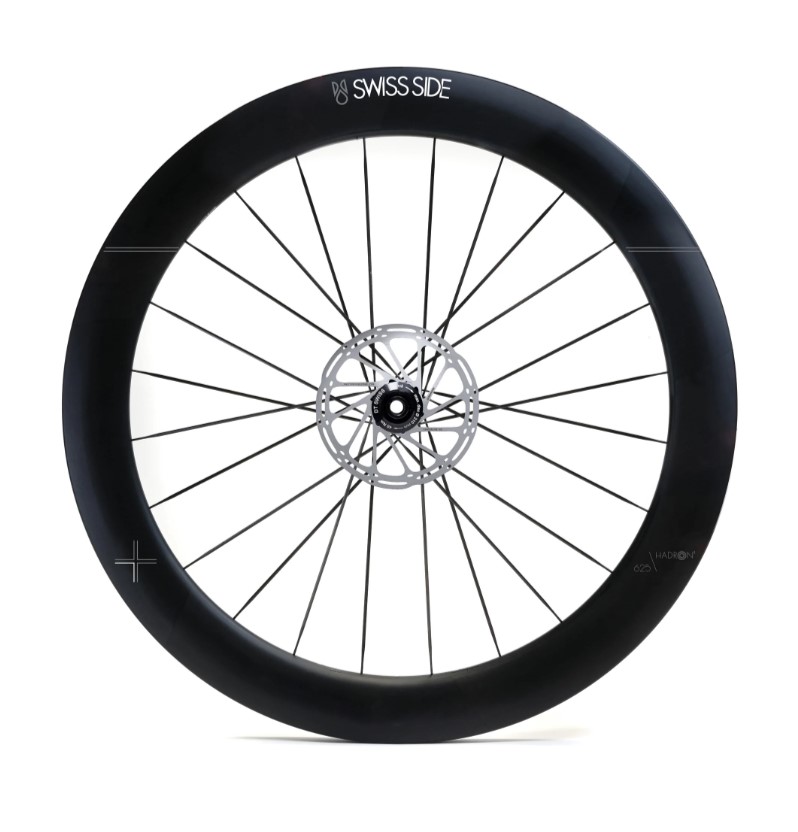

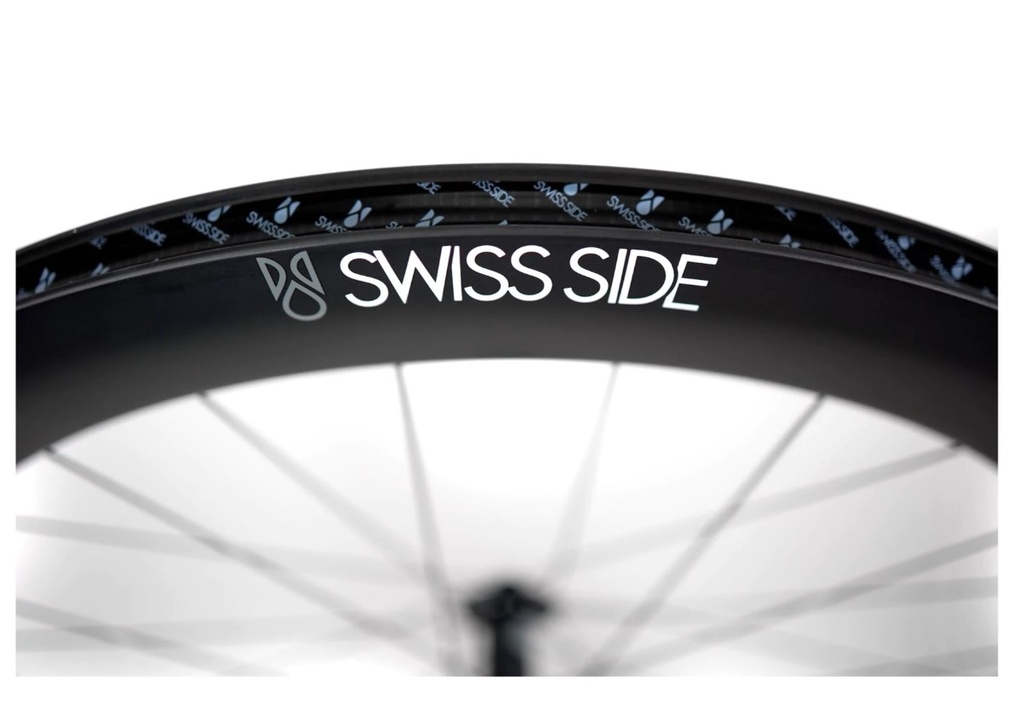

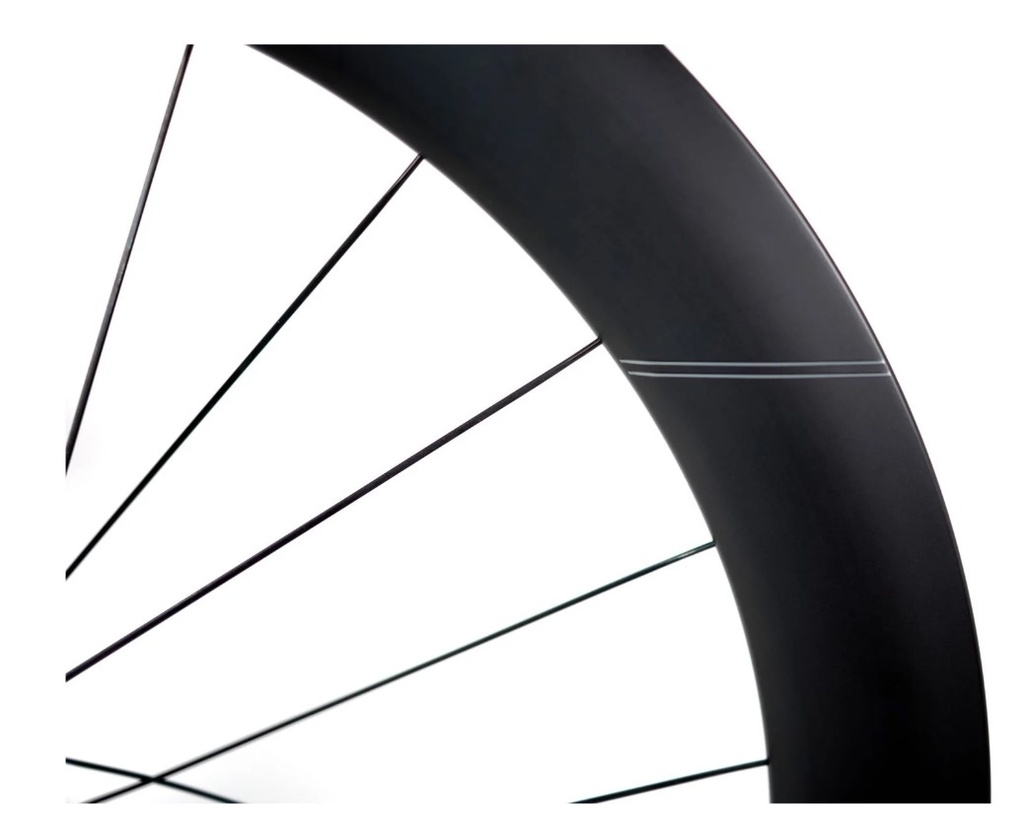

HADRON² Classic 625 Disc Brake
Maximum aero performance and durability for an affordable price! Using the latest in aerodynamic and engineering development methods transferred from Formula 1, the HADRON² Classic rims are full carbon and tubeless ready, using the same race & award winning aero rim shapes as the HADRON² Ultimates. All Swiss Side HADRON² are designed for minimizing the drag of the wheels but also on the bike & rider system. This is achieved by ensuring maximum aero stability and predictability in the wind so that the rider remains in their aero position for the maximum time. The HADRON² Classic is built with ultra durable DT Swiss hubs custom made for Swiss Side’s requirements, together with their Aero Comp spokes. Manufactured through DT Swiss, once again the highest possible Swiss quality and durability is assured.
Delivering unprecedented aerodynamic performance with the widest operational range, the HADRON Classic 625 excels in medium to high wind conditions. Designed to deliver maximum speed and thrust, in road racing, time trial and triathlon courses, this wheel is available in both rim brake and disc brake versions.
|Aero Profile Height
|Max. Rim Width
|Brake Track Width
Shimano 10,11,12 speed freehub as standard. Also SRAM 10,11 speed compatible. Free hub kits available for order separately: Campagnolo 10,11, 12 speed, and 12-speed XDR Driver

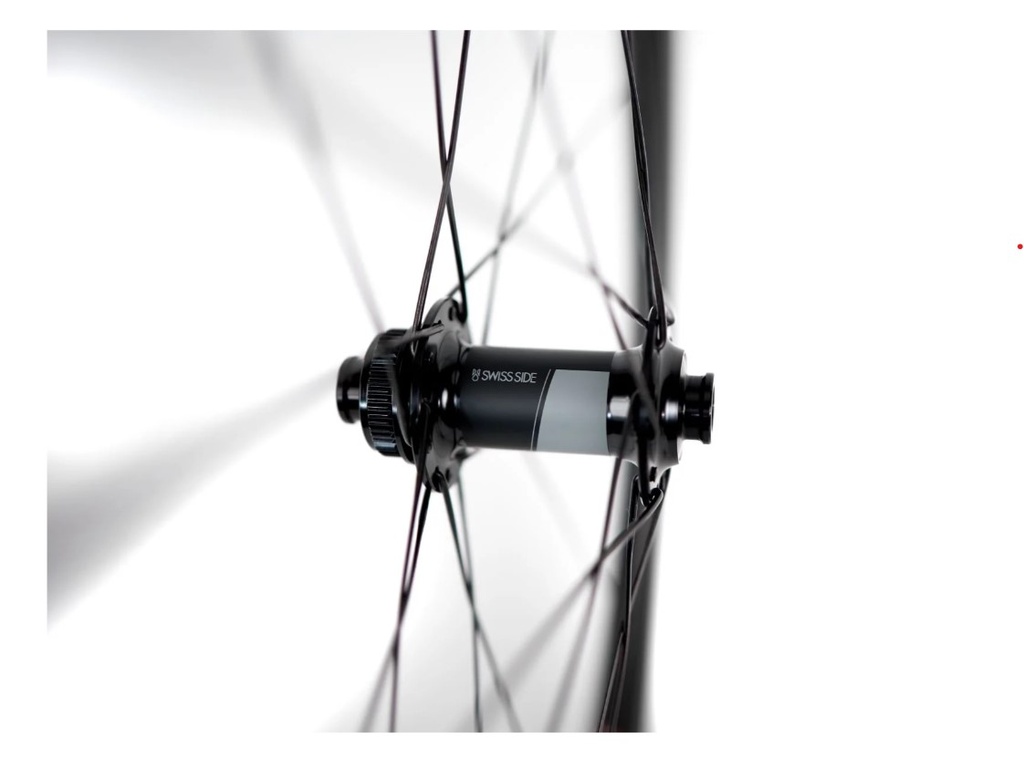

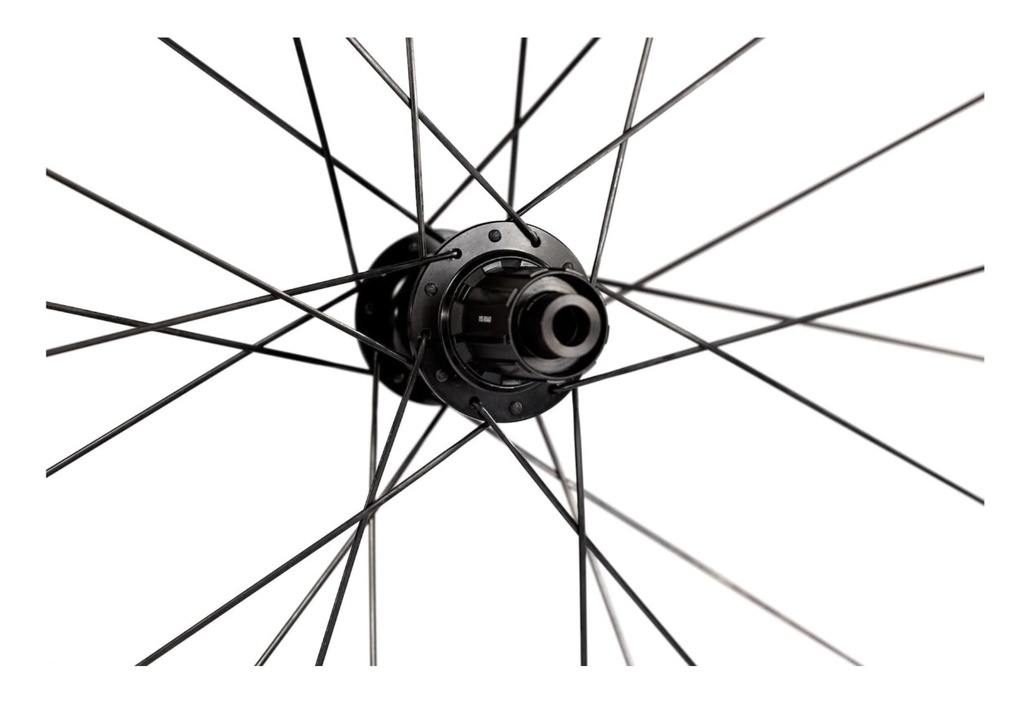

DT Swiss 370 Classic, custom for Swiss Side. Brake Interface: Disc Center Lock; Axle System as delivered: 12 x 100mm thru axle front; 12 x 142mm thru axle rear; Disc brake wheel hubs are also supplied with interchangeable end caps for the following axle configurations: 5mm x 100mm QR front axle; 5mm x 135mm QR rear axle; 12mm x 135mm rear thru-axle. For DISC Rear Wheel: DT Swiss 180 DICUT, 36T Ratchet EXP. Disc Brake Interface: Disc Center Lock; 12/142mm Axle System.
DT Swiss Aero Comp J-bend spokes with DT Swiss pro lock hidden aluminum nipples.
Front Disc Brake (2-cross pattern): 24 spokes.
Rear Disc Brake (2-cross pattern): 24 spokes.
High end stainless steel bearings
Low friction thanks to single sided seals
2080 N load capacity per bearing
Minimal bearing clearance
All tyres from 25mm to 64mm can be used on this rim. We recommend using a 25mm tyre on the front. If additional comfort is desired, a 28mm tyre can be used on the rear. We do not recommend tyres greater than 30mm width for maximimising aerodynamic performance.
RIDER WEIGHT / SAFETY NOTICE
Rider Weight / Safety Notice
The maximum total system weight (bike + rider) for the HADRON² Classic disc brake wheelset is 110kg. Tyre pressures of 120psi should not be exceeded.
