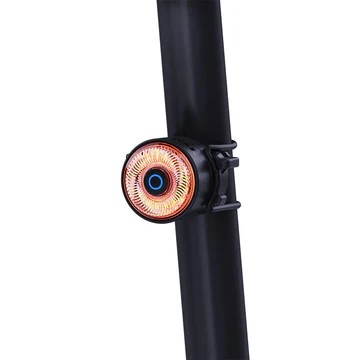

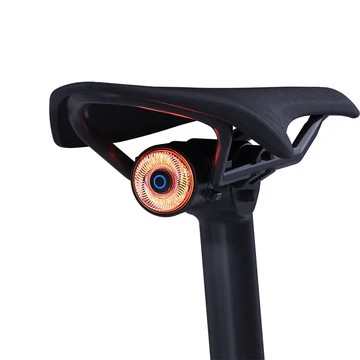

TOWILD TL03 Pro Rear Light

Keep your cycling team visible and safe with the TL03Pro Team Synchronization Tail Light, designed for group rides and enhanced safety on the road.

Dimensions: 23×36.8×36.8mm

Weight: 20g (excluding mount)

Waterproof: IPX6 (heavy rain resistant)

User Manual

Basic Operation

Power on/off: Hold button 0.5s (shows battery level via 4 LEDs)

Mode cycling: Single click toggles 6 patterns:

① Rainbow breathing (18h)

② Red/blue alternating flash (60h)

③ Running light (24h)

④ Steady ON (15h)

⑤ Single flash (60h)

⑥ Pulsing flash (24h)

Advanced Features

Group Sync Mode (50m range):

Double-click when ON → Green LED blinks (searching)

Solid green = Sync success with other TOWILD TL03Pro lights

Single click to exit sync

Brake Function Toggle:

Hold button 3s when ON (light blinks 3x) to enable/disable brake detection

Smart vs Manual Mode:

Hold button 3s when OFF to switch (blinks 1x to confirm)

Smart Mode: Blue LED indicator, auto-sleep after 2min inactivity, wake-on-vibration

Manual Mode: Default setting, no auto-sleep

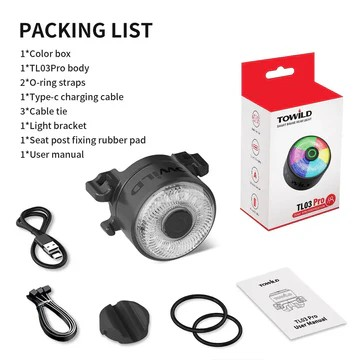

Package Contents

TL03Pro tail light

Seatpost/seatstay mount

USB charging cable (TYPE-C)

Quick start guide

⚠️ Note:

• For optimal brake detection, mount vertically

• Group sync requires firmware v2.1+ on all devices
